3m LC UPC To SC UPC Duplex 2.0mm Yellow Fiber Optic Patch Cord Single Mode For FTTX

Model Number : HX-Patch Cord-06

Place of Origin : Guangdong, China

Brand Name : HX

Packaging Details : paper box

Supply Ability : 1500000 Piece/Pieces per Month

MOQ : 10 pieces

Price : Negotiable

Type : Fiber optic patch cord

Use : FTTH , FTTX

Warranty Time : 5 Years

Custom length : 1/2/3/5/10/15/20/30/50 m or as your inquiry

Insertion Loss : < 0.2 dB

Cable diameter : 0.9 / 2.0 / 3.0 mm

Return loss : > 55 dB

Material of Outer sheath : PVC,LSZH,PU,PE

Armored Tube : with or without follow your inquiry

Working Temperature(℃) : -25℃~+70℃

Connector Ferrule : Zirconia Ceramic

Polish Type : SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC

MOQ : 100pcs

Port : shenzhen

Contact Now

3m LC UPC to SC UPC Duplex 2.0mm Single Mode Yellow Fiber Optic Patch Cord for FTTX

Products Description

3m LC UPC To SC UPC Duplex 2.0mm Yellow Fiber Optic Patch Cord Single Mode For FTTX

Connector Type	SC to LC	Jacket OD	2.0mm/3.0mm
Fiber Mode	9/125μm	Jacket Color	Yellow
Polish Type	UPC to UPC	Wavelength	1310/1550nm
Fiber Count	Duplex	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥55dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Length	2/5/10/15/20m/100m customized length	delivery date	3-7days according the quantity

Armored Fiber Patch Cord

Structure:

tight-buffered fiber+ stainless steel tube+ Aramid yarn + jacket

Tight-buffered fiber: SM:G652D,G657A1,G657A2 or MM:62.5/125,50/125(OM3,OM4) available 0.9mm PVC tight-buffered fiber

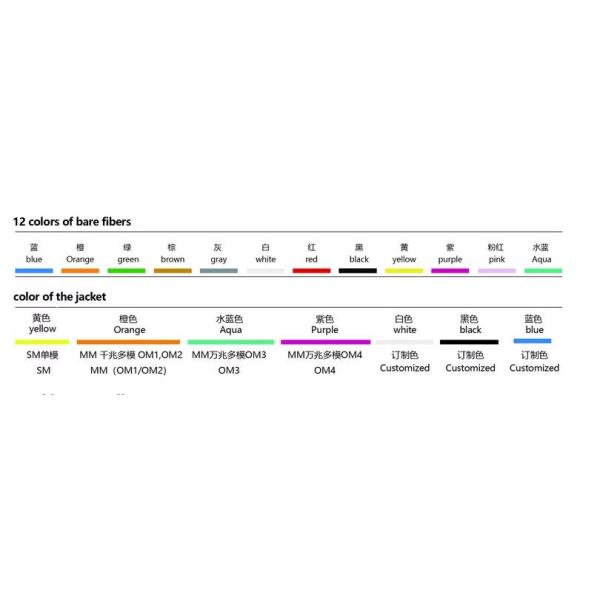

Color:SM/ White or yellow MM/Blue or orange

Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Good mechanical and environmental characteristics;
